Free Tile Printables
Print-and-fill PDFs built on the same numbers as our tile calculators: tiles per square foot by size, waste by layout pattern, grout per bag from the joint geometry and thinset per bag by trowel notch. US Letter, black-and-white friendly, no sign-up.

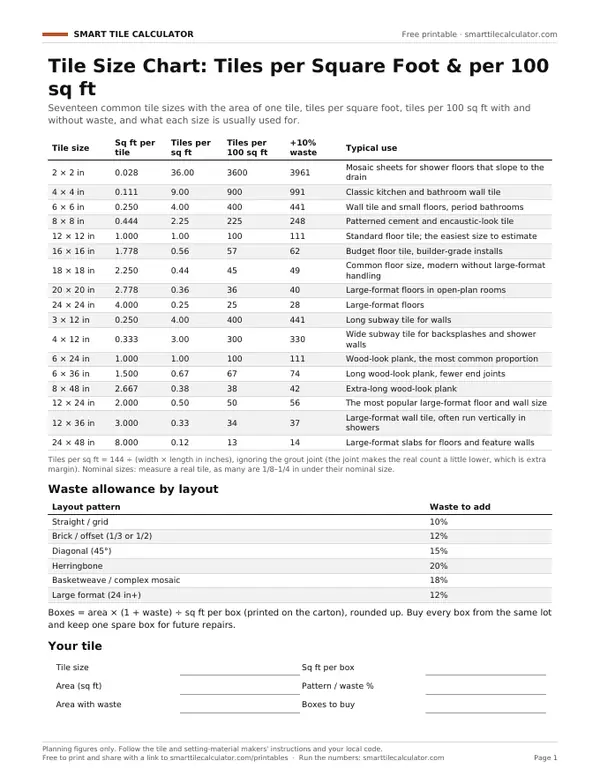

Tile Size Chart: Tiles per Square Foot & per 100 sq ft
PDF · US Letter · 1 page · 46 KB · prints in black and white
A one-page tile size chart from 2×2 mosaic to 24×48 slabs: area per tile, tiles per square foot, tiles per 100 sq ft with 10% waste, typical uses and the waste factor for each layout pattern.
- 17 sizes from 2×2 to 24×48
- Tiles per sq ft and per 100 sq ft
- +10% waste column
- Waste factor by layout pattern

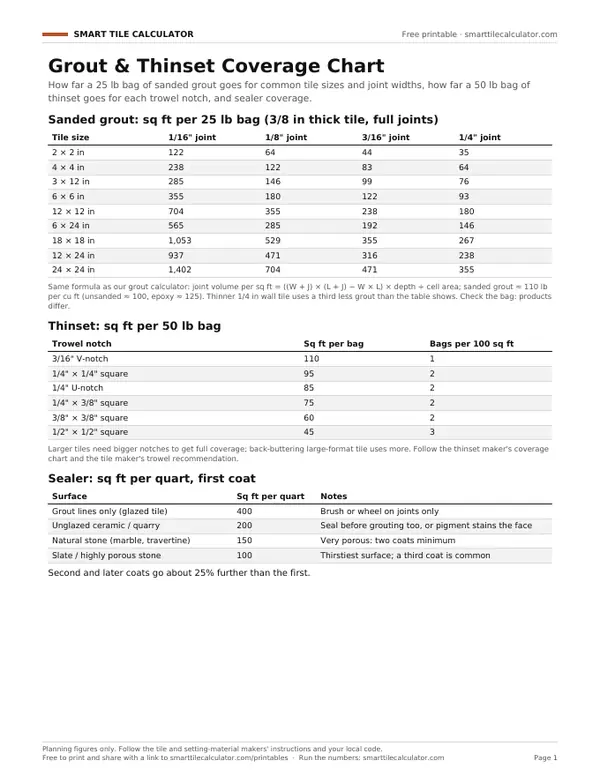

Grout & Thinset Coverage Chart
PDF · US Letter · 1 page · 45 KB · prints in black and white
A printable grout coverage chart: square feet per 25 lb bag of sanded grout for 9 tile sizes at 1/16 to 1/4 in joints, thinset coverage per 50 lb bag by trowel notch, and grout sealer coverage per quart.
- Sq ft per 25 lb bag of grout, 9 sizes × 4 joints
- Thinset sq ft per 50 lb bag by notch
- Sealer coverage by surface
- The grout formula, to work your own

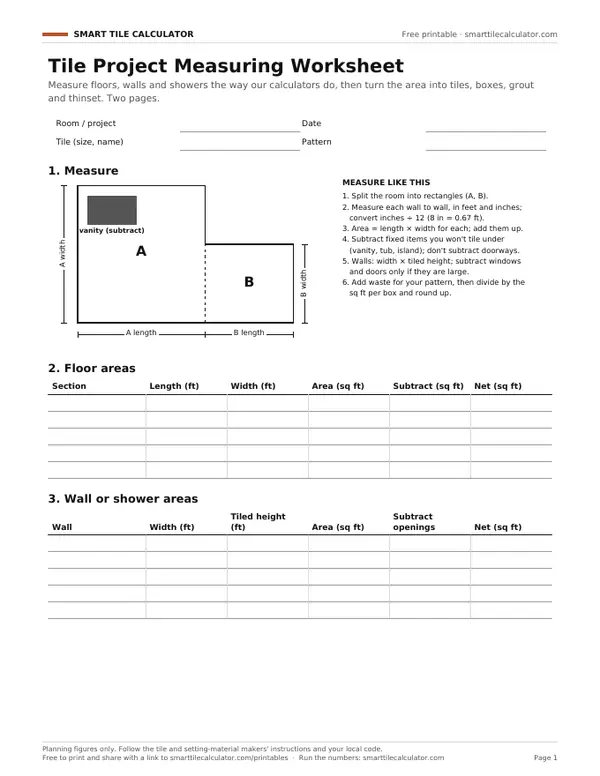

Tile Project Measuring Worksheet
PDF · US Letter · 2 pages · 47 KB · prints in black and white
A two-page tile measuring worksheet: a how-to-measure diagram for L-shaped rooms, area tables for floors and walls, a boxes, grout and thinset order block and a sketch grid.
- How-to-measure diagram for odd-shaped rooms
- Floor and wall area tables
- Boxes, grout and thinset order block
- Layout sketch grid

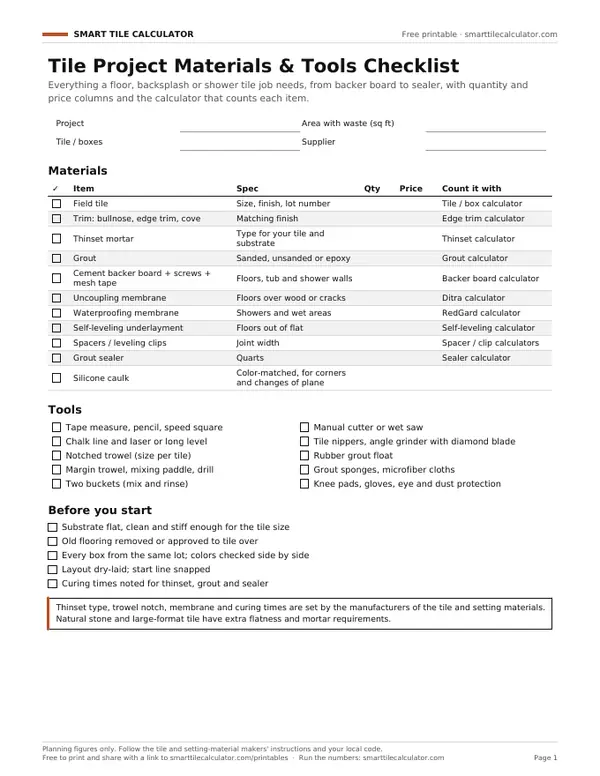

Tile Project Materials & Tools Checklist
PDF · US Letter · 1 page · 46 KB · prints in black and white
A printable tile materials and tools checklist for floors, backsplashes and showers: tile, setting materials, underlayment and waterproofing, trim, grout and sealer, tools and safety gear.
- Tile, trim and setting materials
- Underlayment and waterproofing
- Tools for layout, cutting and setting
- Grouting, sealing and clean-up
How to use them
Measure the room on the measuring worksheet, look up your tile on the tile size chart and add waste for your pattern, then read grout and thinset straight off the coverage chart. The materials checklist is your shopping list for the store.
Want it worked out for you? The tile calculator and grout calculator use the same math, and every result has a print option. You are welcome to share these sheets; please link to this page rather than re-hosting the files.
Planning figures only. Thinset type, trowel notch, membranes and curing times come from the tile and setting-material manufacturers; follow them and your local code.
